Overview

Landmarks are used to introduce the page, informing users of their current location and its primary purpose.

Summarise it!

✨ This is an auto-generated AI summary of the ns-landmark's documentation. It may not be accurate. ✨

Use landmarks to set the scene for what the page is for, what offers might be available and give helpful actions for users. It contains the main heading for the page and provides overarching context to the rest of the page.

Updated

28 November 2024

Additional features for the horizon type have been added:

• The state attribute provides a choice of superflame graphics as a decoration
• The sunrise attribute allows for the image to not be anchored to the bottom of the landmark

Check those options in the specification down below!

Examples

Standard

Configure

Summit

If the page purpose is promotional we recommend using type="summit".

Configure

Hillside

If you are designing a series of informative / educational pages that all follow a similar theme, it would be considered best practice to use the same coloured decoration within the type="hillside".

Configure

Valley

If the page purpose is to showcase features and products, use type="valley".

Configure

Lakeside

If the page purpose is a 400 or 500 error page, use type="lakeside".

Configure

Horizon

If the page purpose is to match above-the-line marketing activity, use type="horizon".

Configure

Guidance

Do

• Use it at the top of the page.
• Communicate the primary purpose clearly and concisely.
• Content must be relevant to the page.
• Use decoration/lifestyle photography only.

Don't

• Use it in the middle or end of a page.
• Always add a CTA (Call To Action) – it may drive traffic away.
• Use it to hold random content - <ns-editorial> may be better to use for this.
• Hold any meaning in the image - it’s a decoration.

Summit

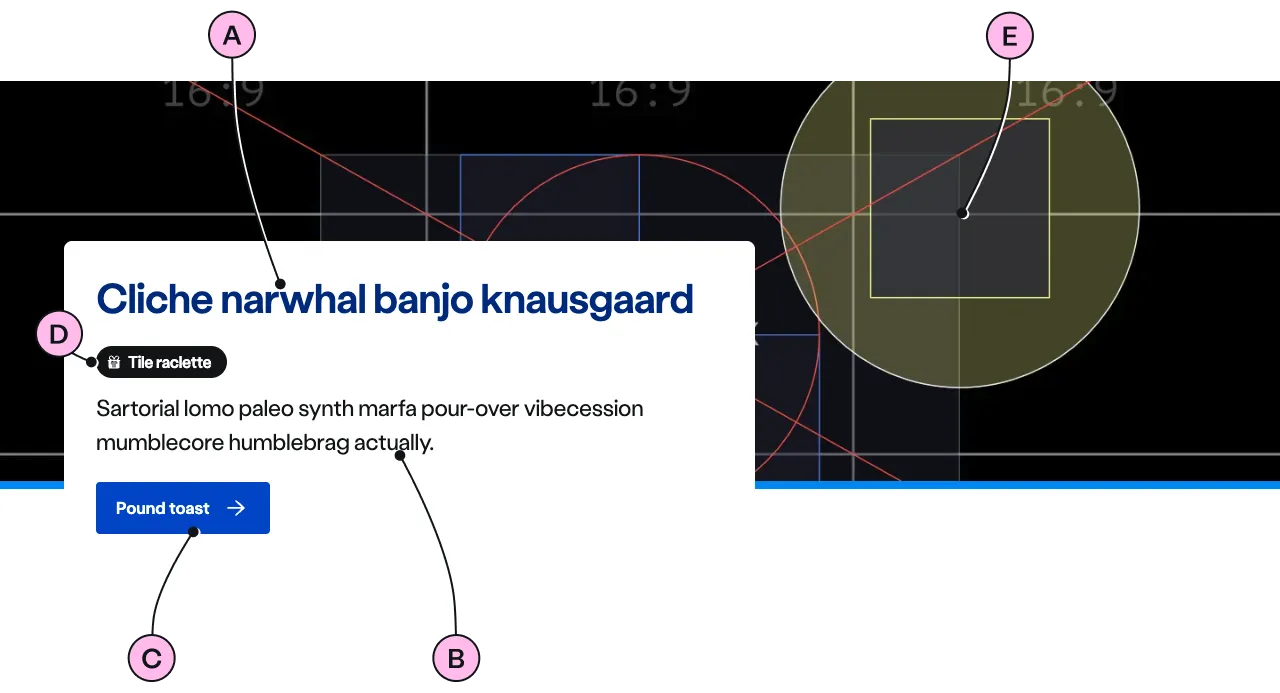

Key

Key	Field type	Guidelines
A	Heading	The recommended length is between 4 and 12 words, not exceeding 50 characters in total.
B	Paragraph	A single, short paragraph works best. The text length should not exceed two paragraphs of 3 lines. Include emphasis with <strong>, inline links <a>, lists <ul> <ol>. Add a caveat link if required.
C	CTA	Keep the text short, relevant, and actionable. It should not exceed 24 characters.
D	Image	Ensure the important focus area of your image remains within the safe-area. Use an image size of 1440 x 810px. Images should be WebP file type, the file size should be no more than 100kb. Note: The image shouldn’t hold any meaning and be only used as a decoration. It doesn’t have an alt="" attribute. This avoids adding unnecessary content for users using assistive technology.

Do

• Capture the moment.
• Set the focus of the photo correctly.
• Convey activity related to the topic.

Don't

• Allow the card to cover important content.
• Obstruct people’s faces with the card.
• Use images with a white background.

Summit image guidance

Use the 1140x810px summit placeholder specifically for the Summit landmark.

💚 Do	💔 Don’t
Here, the focus of the photo is located within the safe-area.	The subject fills the entire photo, and the lady on the left will be obscured.
Capture the story within. This photo is about the lady and her phone.	Unfortunately, this photo is completely unsuitable for a Landmark.

Hillside

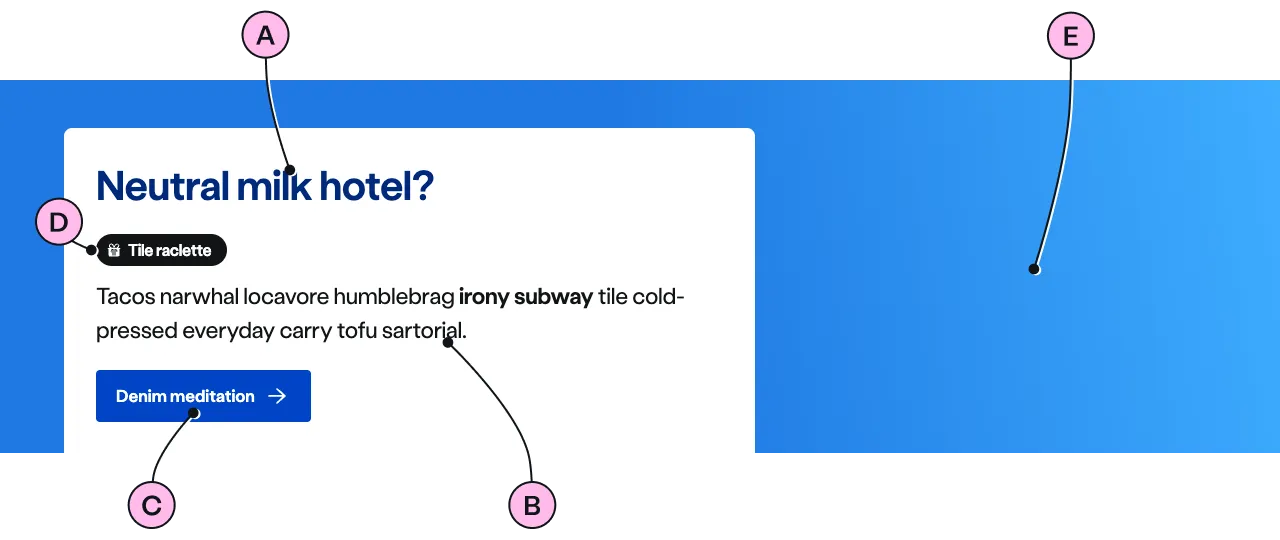

Key

Key	Field type	Guidelines
A	Heading	The recommended length is between 4 and 12 words, not exceeding 50 characters in total.
B	Paragraph	A single, short paragraph works best. The text length should not exceed two paragraphs of 3 lines. Include emphasis with <strong>, inline links <a>, lists <ul> <ol>. Add a caveat link if required.
C	CTA	Keep the text short, relevant, and actionable. It should not exceed 24 characters.
D	Decoration	Apply a colour background. See decoration for the list of options.

Do

• Use the same colour for a set of pages on the same topic, e.g. Guide pages related to boilers.
• Keep the content concise.

Don't

• Use the red decoration for something that is not a promotion or an error-themed page.

Valley

Note

The purpose of the valley landmark is to present an overview of a product or service as a user moves down the funnel of their purchase journey. A CTA may be used, but is not recommended in scenarios where the objective is to encourage further on-page browsing.

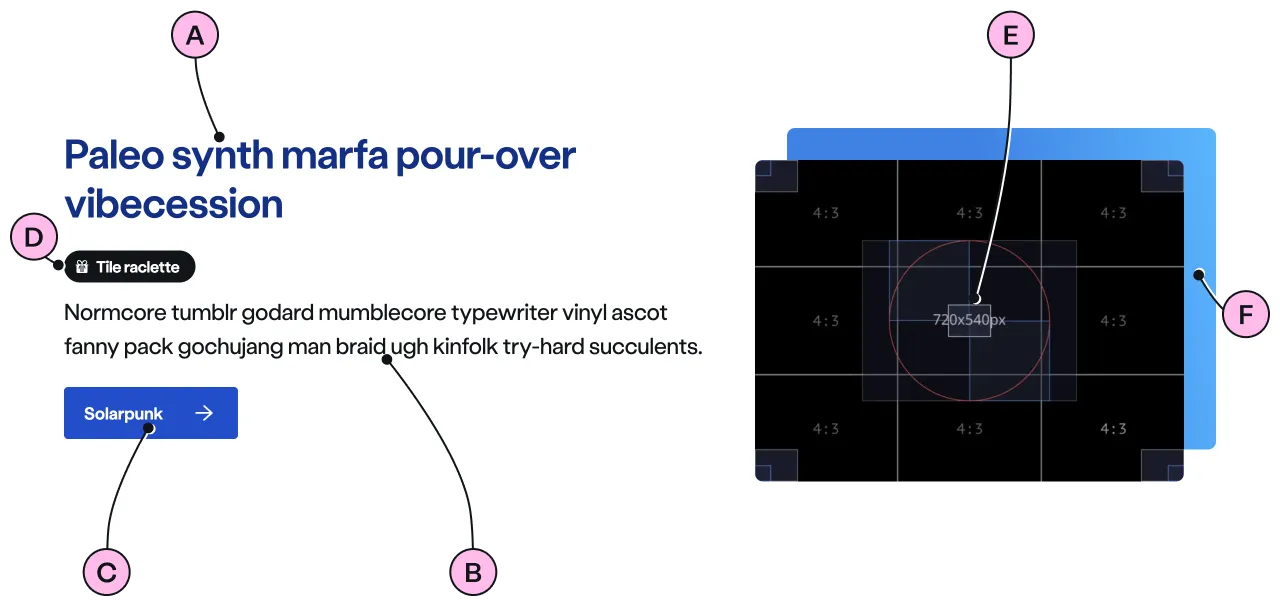

Key

Key	Field type	Guidelines
A	Heading	The recommended length is between 4 and 12 words, not exceeding 50 characters in total.
B	Paragraph	A single, short paragraph followed by an unordered list work best. The text length should not exceed one paragraph and a ticked list of 3 to 5 items. Include emphasis with <strong>, inline links <a>, lists <ul> <ol>. Add a caveat link if required.
C	CTA	Keep the text short, relevant, and actionable. It should not exceed 24 characters.
D	Image	There is a choice of 2 image sizes: 720 x 405px and 720 x 540px. Images should be WebP file type, the file size should be no more than 50kb. Note: The image shouldn’t hold any meaning and be only used as a decoration. It doesn’t have an alt="" attribute. This avoids adding unnecessary content for users using assistive technology.
E	Decoration	Apply a colour background. See decoration for the list of options.

Do

• Use a checked list to highlight key product benefits.
• Use a complementary image to add context to your product or service.
• Use colour, pill and ratio options for alternative aesthetics.

Don't

• Add a CTA if the page’s purpose is for users to consume the content.
• Use long, wordy content. Instead, keep the user interested with a snappy overview and draw them down the page.

Lakeside

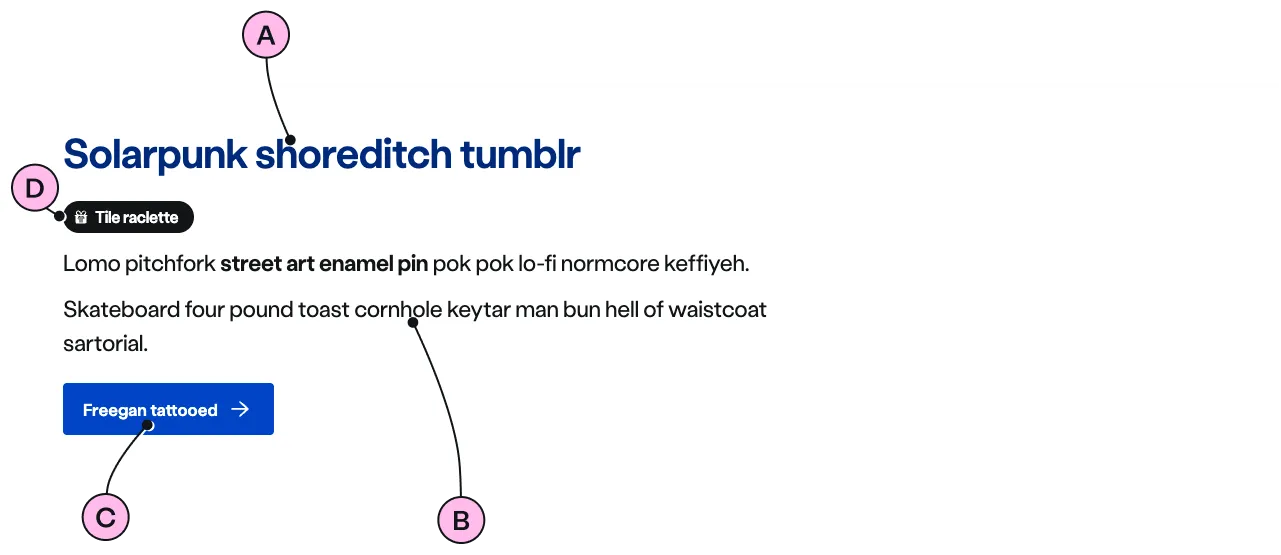

Key

Key	Field type	Guidelines
A	Heading	The recommended length is between 4 and 12 words, not exceeding 50 characters in total.
B	Paragraph	A single, short paragraph works best. The text length should not exceed two paragraphs of 3 lines. Include emphasis with <strong>, inline links <a>, lists <ul> <ol>. Add a caveat link if required.
C	CTA	Keep the text short, relevant, and actionable. It should not exceed 24 characters.

Do

• Use more than one paragraph.
• Display error pages of the 400 and 500 types.

Don't

• Use more than three paragraphs.
• Use it to build a page.

Horizon

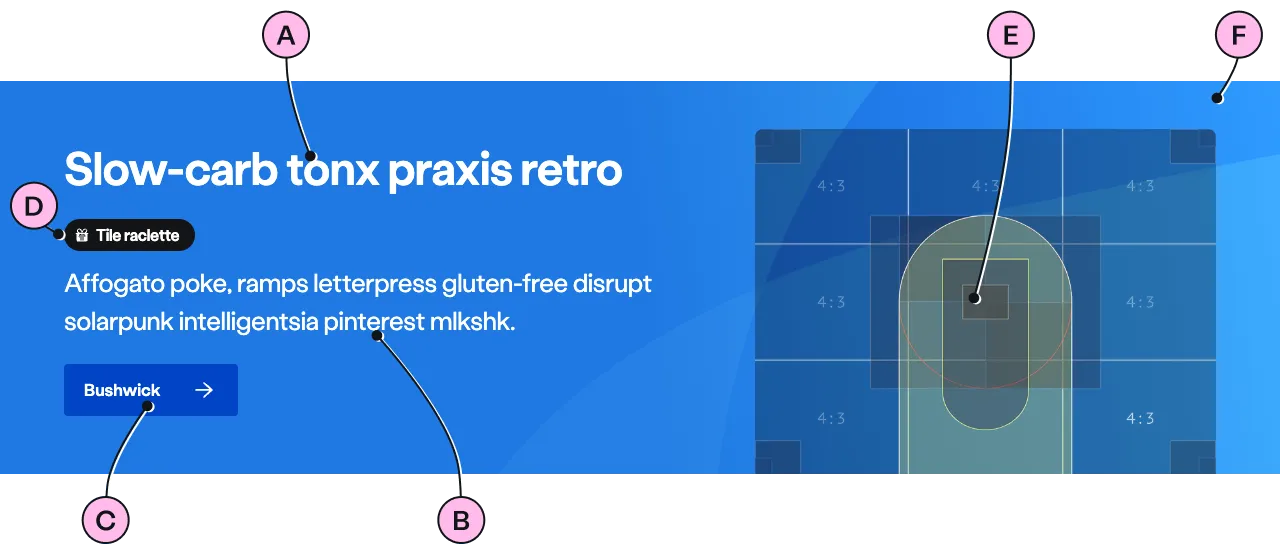

Key

Key	Field type	Guidelines
A	Heading	The recommended length is between 4 and 12 words, not exceeding 50 characters in total.
B	Paragraph	A single, short paragraph works best. The text length should not exceed two paragraphs of 3 lines. Include emphasis with <strong>, inline links <a>, lists <ul> <ol>. Add a caveat link if required.
C	CTA	Keep the text short, relevant, and actionable. It should not exceed 24 characters.
D	Image	Use a cut-out image paying close attention to the focus area in the image: 720 x 540px horizon.
E	Decoration	Apply a colour background. The decoration values are restricted to cyan, red, slate. All other colours will default to cyan

Do

• Use at the top of the page.
• Use for ‘above-the-line’ marketing messaging and promotions.
• Keep the content concise.
• Use a complementary image to add context to your product or service.
• Use this on tier 1 pages - such as home page and overview pages.

Don't

• Use long, wordy content. Instead, keep the user interested with a snappy overview.
• Use images with a background.
• Add a CTA if the page’s purpose is for users to consume the content.
• Use the red decoration for something that is not a sale.
• Use the slate decoration for something that is not Black Friday messaging.

Horizon image guidance

Use the 720x540px horizon placeholder specifically for the Horizon landmark.

💚 Do	💔 Don’t
Image scaled up to maximise available space without touching top or side edges.	Not enlarging image to maximise available space.
Image with cut off bottom aligned to the bottom edge.	Image with cut off not aligned to bottom edge.
Cut out of boiler, including shadow, not cropped by edges.	Image cropped by top edge.
Focal point of mother and child positioned centrally.	Image not positioned over central focal point.

Considerations

• Use shorter, simpler words for more effective headings.
• For subheadings, aim for a length of 1 to 5 words.
• Ensure the message is in plain English and assists the user by providing an actionable link if possible.
• If the page’s purpose is to provide further information about a product or service, avoid including a Call to Action (CTA) within the landmark, as this can lead to users dropping out as they may click the CTA instead of reading the page to understand their next steps.
• The type of landmark used should be determined by the page type.

Implementation

Placement

The ns-landmark component can only be used as a child of the <main> element.

Specification

Attributes


Property


Description

The link to the decorative image. The visual in the image needs to be related to the content.

Type

string

Default

pill-over-image

Property

pillOverImage

Description

The toggle to display the pill over the image.

Type

boolean

Default

false

sunrise

Property

sunrise

Description

Vertically center the media and content in the horizon landmark.

Type

boolean

Default

false

decoration

Property

decoration

Description

The decorative background colour for the landmark.

Type

string

Options

cyan lime navy blue forest orange red yellow

Default

cyan

state

Property

state

Description

The state of the horizon landmark that dictates the orientation of the flamemark.

Type

string

Options

alpha beta gamma hide-flamemark

Default

alpha

ratio

Property

ratio

Description

The aspect ratio of the image.

Type

string

Options

16 / 9 4 / 3

Default

4 / 3

type

Property

type

Description

The type of the landmark.

Type

string

Options

summit hillside lakeside valley horizon

Default

summit

Slots

Slot	Permitted tags	Description
heading	<h1>	The heading of the landmark and needs to be related to the content.
paragraph	<p>	The content of the landmark.
cta	<ns-cta> <a>	The interactive content for the landmark.
pill	<ns-pill>	The pill to attract attention to key information in the content.

Specification notes

<ns-form>

• A form is optional and recommended in scenarios where you need some information from the user to start a journey or dynamically change the content on the rest of the page.
• Don’t use ns-selector, ns-datepicker, nsx-address-selector, or nsx-marketing-consent as these require more space than is available in the landmark.
• Keep forms short in hillside to avoid distorting and stretching the background decoration colour.

Figma

Please note: The ns-landmark Figma component configuration instructions are available only to members of the British Gas workspace who have access to the Nucleus Figma UI Kit.

Configuration instructions

(Opens in Figma).
